• 1600 W Molybdenum X-ray Tube

Delivers strong, high-penetration X-rays optimized for soft-pack battery materials.

• Photon-Counting 2D Array Detector

High-efficiency, low-noise capture of fine diffraction details, with fast scan times.

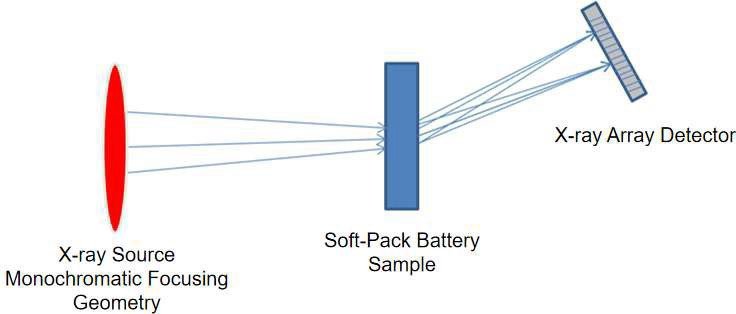

• Transmission Geometry

X-rays enter through one side of the pouch and exit through the opposite—ideal for full-cell analysis.

• Temperature-Controlled Sample Stage

Wide range (-30°C to 300°C) supports studies of degradation, performance, and thermal failure.

• Precision Goniometer

Theta–2Theta geometry with a 144 mm radius for stable, accurate angular scanning.

• Compact Footprint

Lab-friendly design with powerful capability: 900 × 680 × 550 mm, 100 kg.

Why In-situ Transmission XRD for Soft-Pack Batteries?

• True Long-Term Cycling:

Unlike coin cell molds, soft-pack batteries offer superior sealing and stability for thousands of cycles.

• Full-Depth Material Insight:

Vertical transmission geometry collects diffraction data through the entire pouch— enabling dual-electrode analysis.

• Superior Resolution at Any Thickness:

Focused beam transmission ensures peak clarity, even in thicker pouch cells.

• Thermal Behavior Included:

Variable-temperature stage enables in-situ measurements at both sub-zero and high- temperature conditions.

• Electrochemistry + Structure, Together:

Seamless integration with an electrochemical workstation allows simultaneous control and data acquisition during charging/discharging.
