● Independent multi-port modules for simultaneous sample degassing flexibility.
● Programmable temperature ramping ensures precise and consistent heating control.
● Intuitive touchscreen interface simplifies operation and enhances productivity.

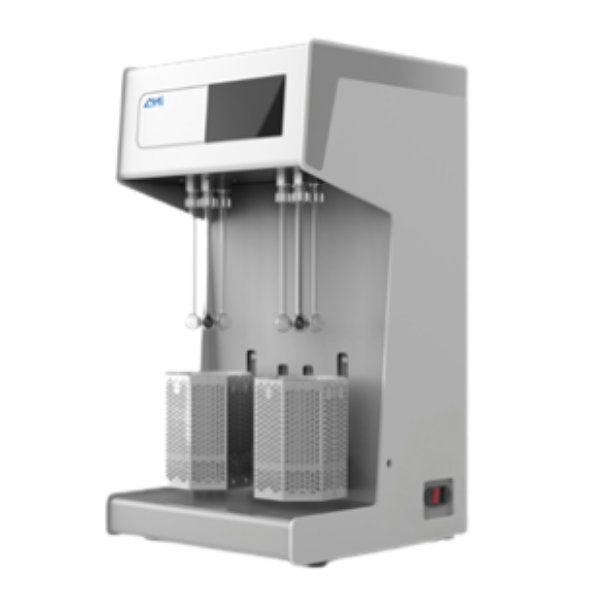

The Prep 8A features two independent working modules, each with four degassing ports, allowing simultaneous preparation of up to eight samples. Each module operates with independent temperature and time controls, enabling flexible and parallel sample degassing.
A multi-stage vacuum pumping system, regulated by an internal pressure transducer, prevents sample elutriation, controls switching pressure, regulates nitrogen backfill pressure, and maintains precise pressure control during furnace descent. Programmable temperature ramping and a built-in cooling fan ensure efficient, precise, and controlled thermal treatment.
The system is operated via a 7-inch touchscreen interface with automatic parameter memory, streamlining operation and enhancing usability.
Use-Case:
High-capacity vacuum degasser with vertical configuration; ideal for labs prioritizing throughput, thermal uniformity, and complete automation.
| Prep 8A | Vacuum Degasser | |||
|---|---|---|---|---|
| Model | Prep 8A | |||
| Temperature | RT–400°C | |||
| Control Accuracy | ±1°C | |||
| Degassing Port | 8 | |||
| Pump | 1 mechanical pump | |||
| Heating Method | Programmed temperature ramping (Optional) | |||
| Dimensions and Weight | L 17.0 in (430 mm) × W 16.0 in (405 mm) × H 28.5 in (725 mm), 80 lbs (36 kg) | |||
