● Automatic multi-gas switching with one-button operation for convenience.
● Compatible with AMI instruments and various external systems.
● Supports up to six gas inputs with cascade expansion capability.

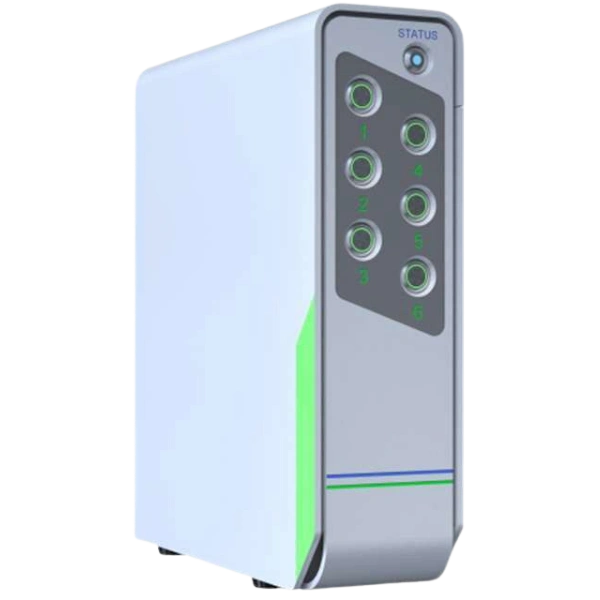

The automatic multi-channel gas inlet controller, Switch-6, features an integrated design, enabling one- button switching among multiple gases and supporting up to six input ports. Users can select any gas path for output as needed, making it ideal for applications requiring frequent gas changes during various testing procedures.
This device is highly compatible, designed to work seamlessly with the full range of AMI instruments and a wide variety of systems from other manufacturers.
Safety
Features a streamlined valve disassembly and assembly when switching between different gases, significantly reducing the risk of leakage from manual operations. Additionally, a corrosion-resistant version is available upon request to accommodate more demanding environments.
Simplicity
Enables automatic gas switching with a single button press. It also performs automatic pipeline purging, preventing residual gases from affecting the accuracy of subsequent experimental results.
Flexibility
Supports six input ports and one output port, with the option to cascade multiple units—allowing for 6, 12, 18, or more gas paths as needed.
| Switch-6 | Automatic Multi-channel Gas Inlet Controller | |||
|---|---|---|---|---|
| Number of Ports | 6 (12, 18 are optional) | |||
| Tubing Size | 1/8 inch | |||
| Pressure | Near atmospheric | |||
| Gas Types | N₂, H₂, Ar, and other gases (corrosive gases such as H₂S, NH₃, HCl, etc., are available as options) | |||
| Dimensions and Weight | L 28.7 in (730 mm) × W 9.5 in (240 mm) × H 10.0 in (253 mm), 11 lbs (5 kg) | |||
